15

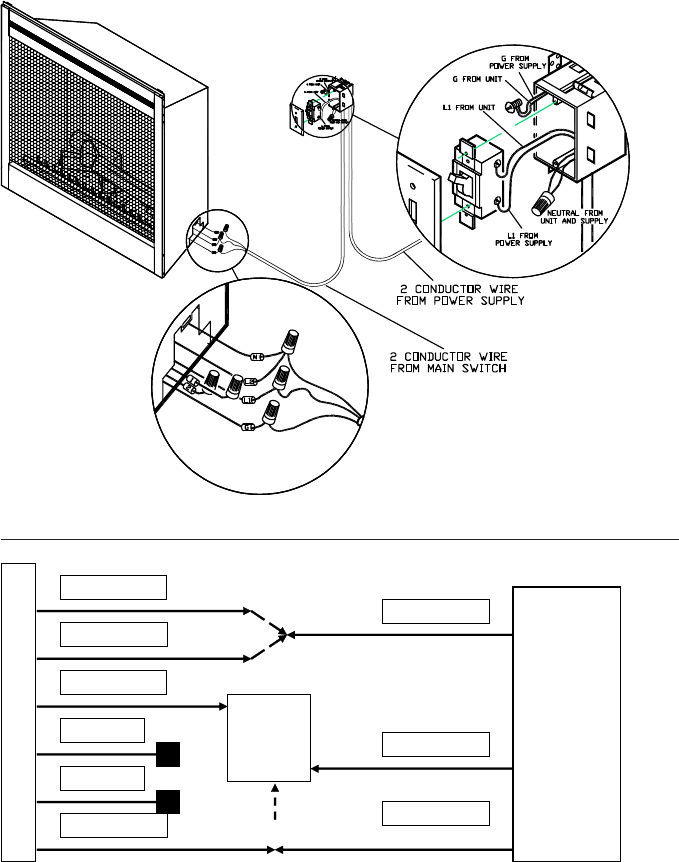

120 vo l T Ma i n Wa l l sW i T C h Wi r i n g di a g r a M - no he a T

in s T a l l a T i o n

FIREPLACE JUNCTION BOX

120 V

POWER

SUPPLY

(BREAKER

PANEL)

WHITE - N

RED –

L2

BLACK – L1

WHITE – N

BLACK – L1

GROUND - G

WALL

SWITCH

GROUND - G

RED – 1

RED – 2

WIRE

NUTS
